Electrophoretic Equipment E-Coating Production Line with Customization and Plating Coating Machine KTL/EPD

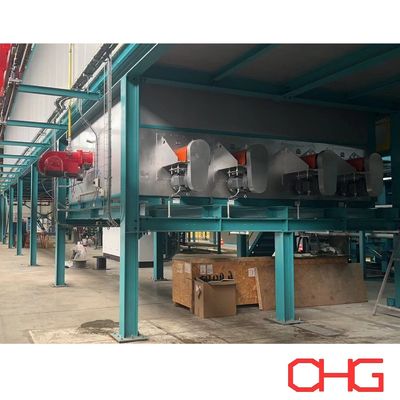

Electrophoretic Coating Line (KTL/EPD) for Automotive Battery Enclosures

Project Overview

This electrophoretic coating system is purpose-built for automotive battery housings, utilizing advanced cathodic electro-deposition (CED) technology to deliver uniform film thickness, excellent corrosion protection, and complete surface coverage—even on complex geometries and recessed areas.

Project Execution

1. Engineering & System Design

• Detailed analysis of client requirements and process expectations

• Customized plant layout optimized for available space and workflow efficiency

• Advanced CAD modeling with iterative design validation

• Final system configuration approval prior to manufacturing

2. Fabrication & Quality Control

• Manufacturing in strict accordance with approved technical specifications

• Multi-level quality inspection throughout production

• Transparent progress updates during fabrication

3. Installation, Commissioning & Training

• Deployment of an experienced installation and commissioning team

• On-site system testing and process optimization

• Comprehensive training program covering:

  • Equipment operation and control

  • Preventive maintenance practices

  • Troubleshooting and fault handling

Technical Specifications

System Performance

• Uniform coating thickness across complex and enclosed structures

• Excellent penetration into cavities and recessed areas

• Corrosion resistance exceeding 1000 hours in salt spray testing

• Stable coating quality with low environmental impact

Key Advantages

• Consistent Coating Quality
  Ensures even film build on all surfaces, improving both functional performance and visual appearance.
• Outstanding Corrosion Protection
  Forms a tightly bonded protective layer that performs reliably in harsh environments.
• High Production Efficiency
  Supports continuous, automated operation with reduced manual intervention and increased throughput.
• Environmentally Responsible Process
  Utilizes waterborne coatings with minimal emissions, meeting stringent environmental standards.
• Optimized Material Utilization
  High transfer efficiency reduces paint loss and lowers overall consumption.
• Wide Material Compatibility
  Suitable for steel, aluminum, galvanized substrates, and selected non-metal materials.
• Enhanced Operational Safety
  Eliminates the need for flammable solvents, improving workplace safety conditions.
• Stable Quality Control
  Advanced monitoring systems maintain consistent coating thickness, adhesion, and surface finish.
• Long-Term Cost Benefits
  Although initial investment is higher, reduced waste, improved efficiency, and durability result in lower lifecycle costs.
• Flexible Coating Options
  Supports a variety of finishes, including clear, colored, and textured coatings.

Customization & Turnkey Solutions

We provide fully customized electrophoretic coating systems tailored to your product specifications, production capacity, and facility layout. Our turnkey solutions cover everything from design and manufacturing to installation and commissioning.

For an accurate quotation and optimized system design, please share your technical requirements with our team. We are committed to delivering a solution that maximizes efficiency, quality, and long-term value.
